Remember the place where you enjoyed carnival ride the most? Imagica, Wonderla, Science city or the local vacation fair? You might be fond of that swing carnival ride or would be afraid of sitting in one, but creating a carnival ride model at home is not scary at all. In-fact, it’s a joyful experience.
Yes, in this blog post, we are going to make a carnival ride model. This can be presented in your school projects and science projects as well. But first….
What is a carnival ride?
Carnival ride is a mechanical device that has chair/seats in it, where people can sit & enjoy the thrilling rotation of the wheel. Mostly, seen in amusement parks, children parks and city fairs. These are known as Silly symphony swings, swing carnival ride and amusement ride aswell.
How to make a carnival ride?
We will make a carnival ride model using construction papers and havi elements. You can make this using these robotics kits.
What will you need?
Elements:
Power – 1
Motor – 1
Accessories:
Geared motor -1
Powerbank with usb cable – 1
Craft material:
Card paper
Construction papers
Scissor
Scale
Pencil
Glue
Paper straw
Cello tape
Double sided tape
Thread or wire ties
Get the material to make carnival ride project model. Contact us.
The making
You can draw the shapes on construction papers yourself or can download the templates given at the end of the post. Print them directly on construction paper or print on regular paper and paste on thin cardboard.
1. Ceiling of carnival ride
Step 1

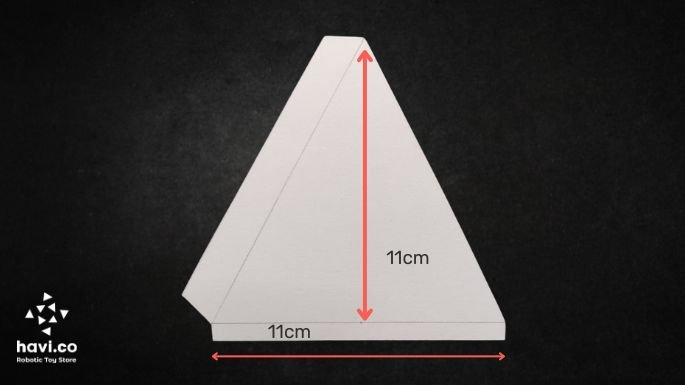

Cut the card paper to make a triangle with flaps of defined measurement. Make 6 triangles with these extra flaps.
Step 2

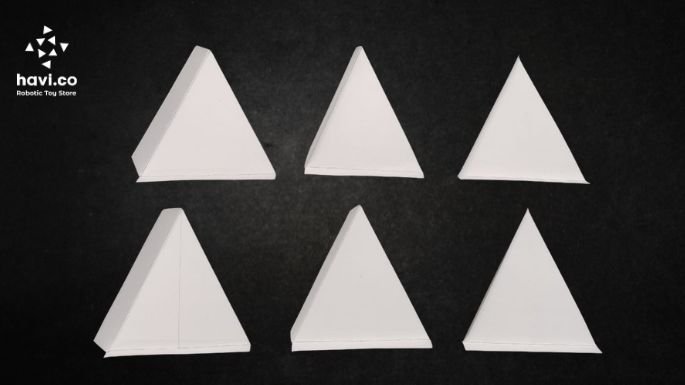

Fold the flaps of the triangles from the pencil marks. You can see that now the triangle is formed properly.

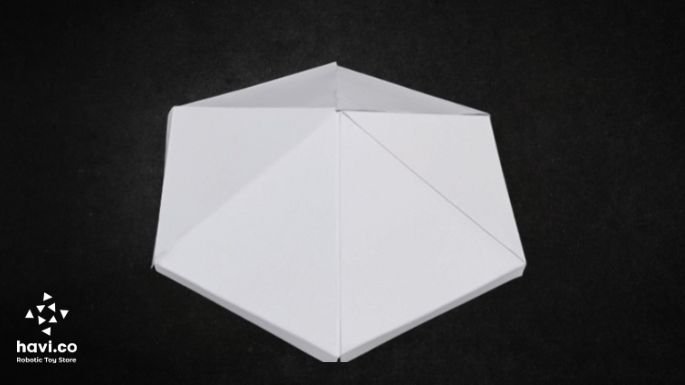

Step 3

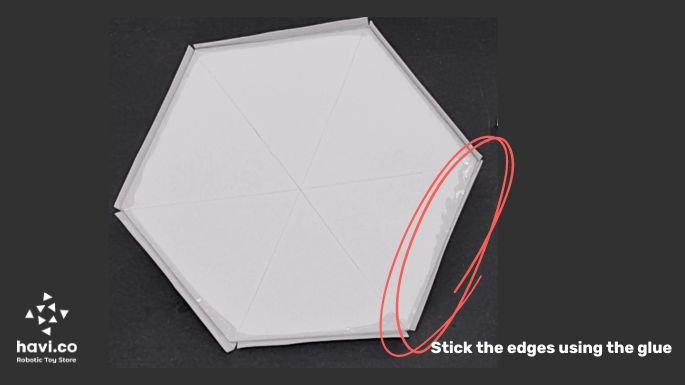

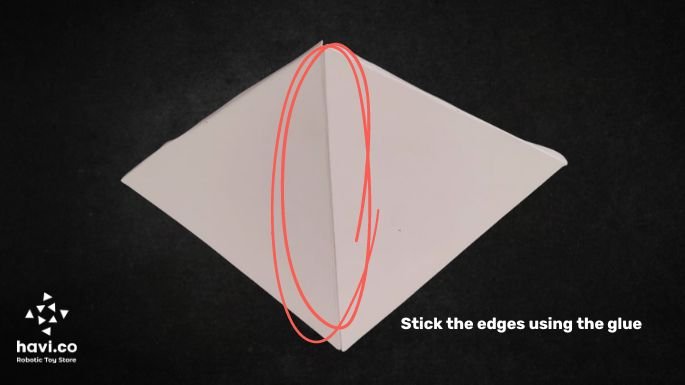

Stick the folded edges with each other using glue. Stick all the 6 triangles with each other to make the ceiling for carnival ride.
Step 4

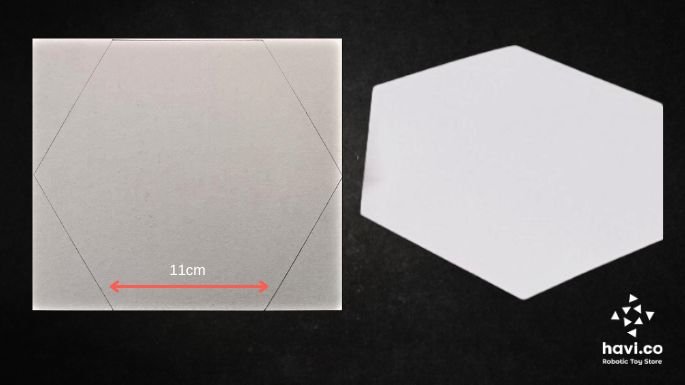

From another card paper. Draw a hexagon and cut it using a scissor. Draw connecting lines using pencil from hexagon edges.

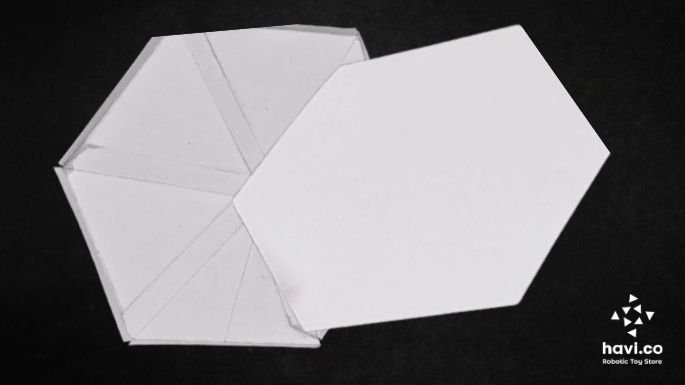

Stick the hexagon along with the ceiling.
2. Swings of carnival ride
Step 5

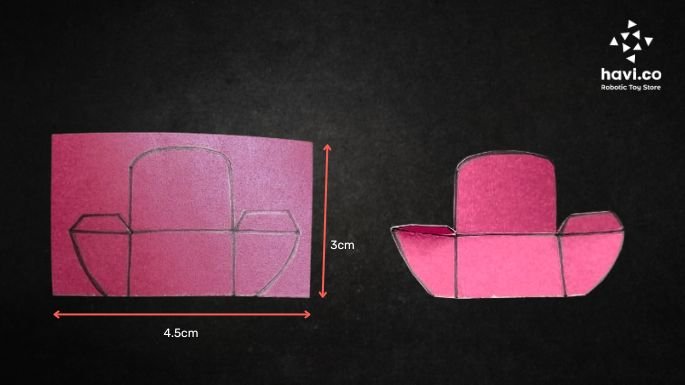

Draw or take print of following object. Cut on the outlines and and fold the shape. Glue to bind the joins. You have made one seat. Need to make 6.
Step 6

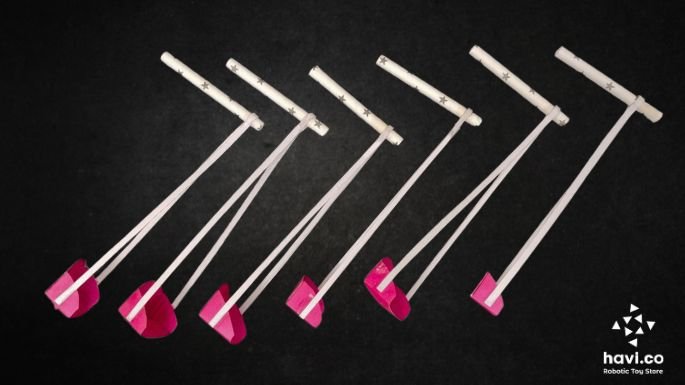

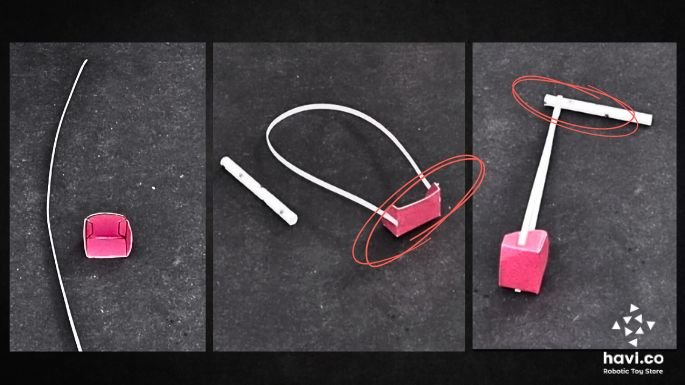

Use a string or thin paper strip to hang the seat along the ceiling. Stick the thread with paper straw. Repeat the process to make 6 swings.
3. Assembly of swings & ceiling
Step 7

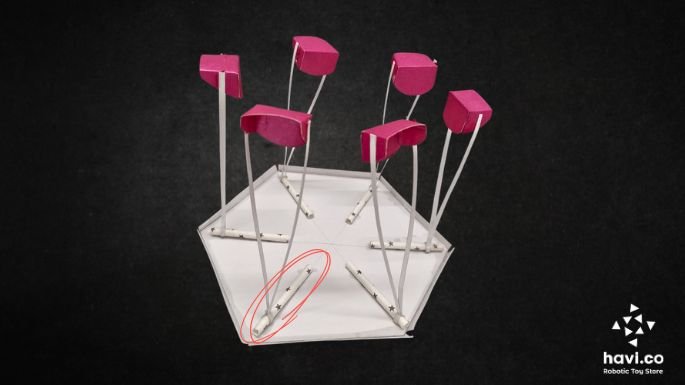

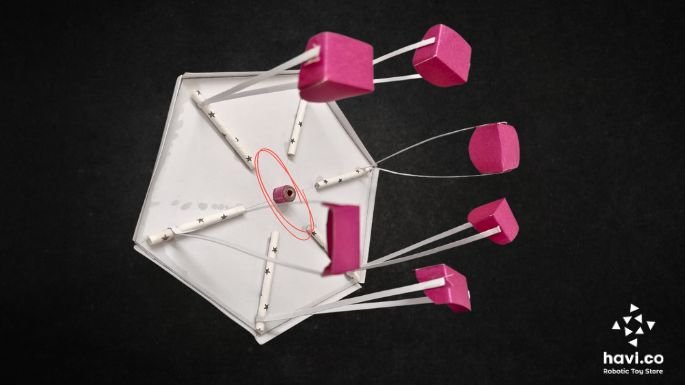

Stick the paper straw on the hexagon side of the ceiling surface.
Step 8
Make an insertion for the motor shaft and stick it along with the ceiling.
4. Circuit of carnival model
Step 9

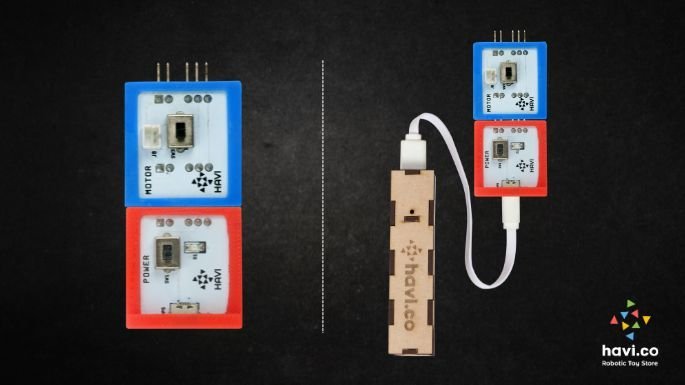

Snap the Elements to make the circuit: Power + Motor. Connect the circuit with the powerbank.
Step 10

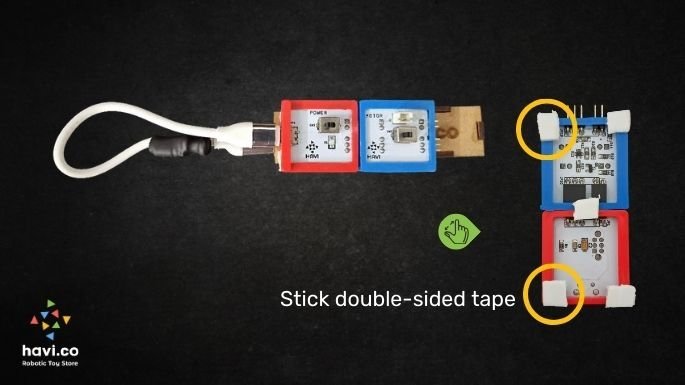

Stick the circuit over the power bank using double-sided tape. Connect the geared motor with Motor Element.

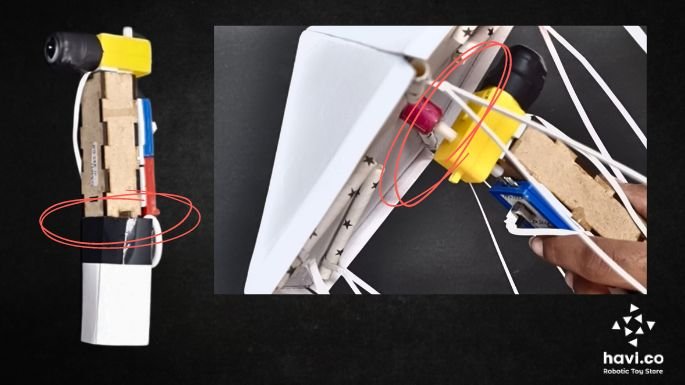

Step 11
Stick the geared motor on opposite side of usb cable connection of powerbank.
Step 12

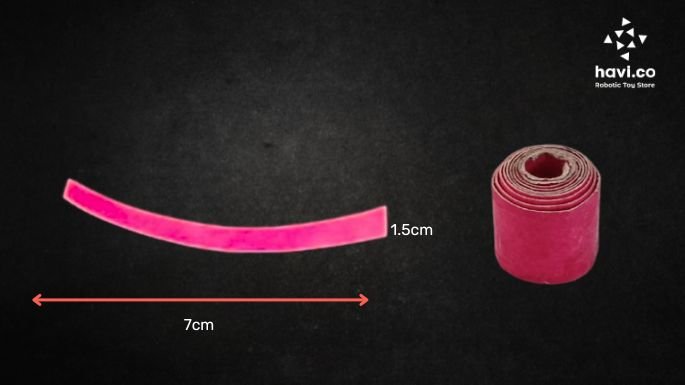

Push the cable side part of powerbank into that roll. The handle to balance the carnival ride is ready.
Step 13
Insert the geared motor shaft to the paper roll fixed on ceiling of ride.

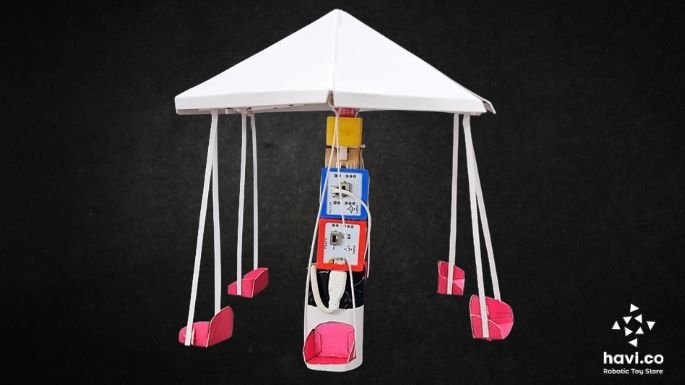

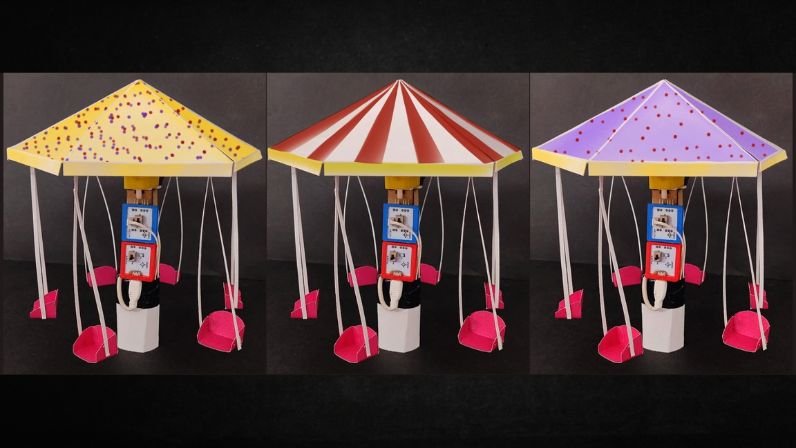

The carnival ride model is ready.
Step 14

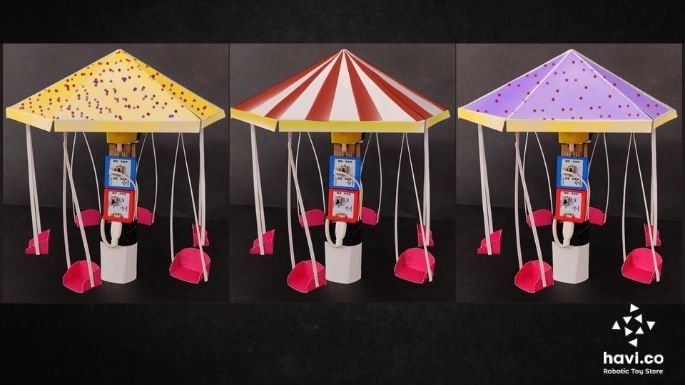

Decorate it as per your choice.
How does carnival ride model work?
When you switch on the Power Element, the power bank passes the stored current to the Power Element. Subsequently, the Power Element transfers the current to the connected Motor Element, providing the necessary power for the rotation of the attached geared motor. Once the DC geared motor initiates, the connected card ceiling begins to rotate, causing the carnival ride to rotate or move.
